Product Overview

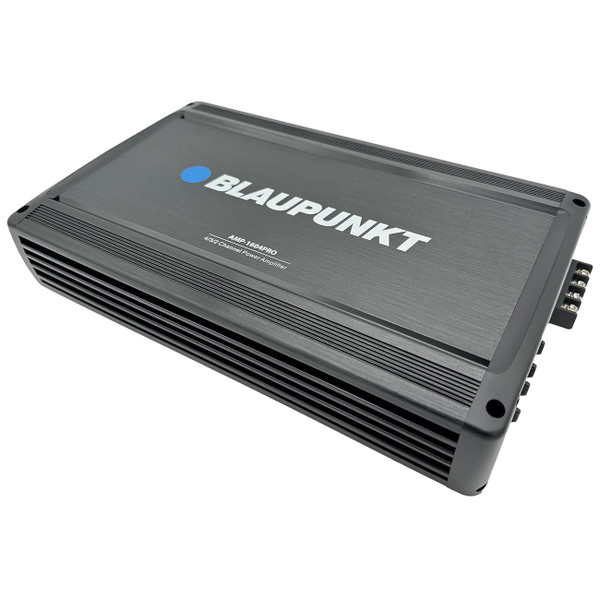

Blaupunkt Pro Series 4 Channel Amplifier, 600W RMS / 1600W MAX
Max Output Power: 1600W
4 x 150 Watts RMS @ 2 Ohms
4 x 100 Watts RMS @ 4 Ohms
2 x 178 Watts RMS @ 4 Ohms (Bridged)
(W x H x L) 7.4"e; x 2.2"e; x 11"e;
2 Ohm Stable
Amplifier Class: A/B
4/3/2 Channel
Frequency Response: 10HZ – 30KHZ
Signal to Noise Ratio: =>96dB
Voltage Supply: 11 – 15V DC
Gain Adjust: 200mV – 8V
Total Harmonic Distortion: <=0.05%
Hi/Low Level Inputs
Crossover Frequency: 50HZ – 250HZ
Crossover Slope: 8 – 10dB/oct
