Product Overview

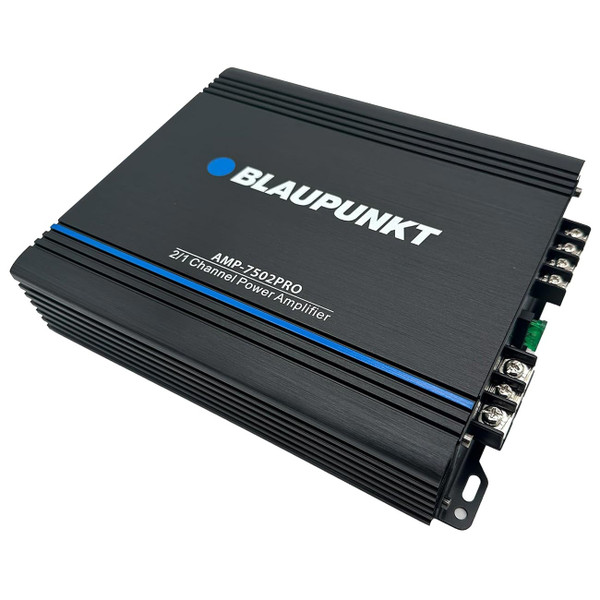

Blaupunkt Pro Series 2 Channel Amplifier, 320W RMS / 750W MAX
Max Output Power: 2000W
2 x 325 Watts RMS @ 2 Ohms
2 x 160 Watts RMS @ 4 Ohms
1 x 300 Watts RMS @ 4 Ohms (Bridged)
(W x H x L) 7.5"e; x 2.2"e; x 8.6"e;
2 Ohm Stable
Amplifier Class: A/B
2/1 Channel
Frequency Response: 10HZ – 45KHZ
Signal to Noise Ratio: =>90dB
Voltage Supply: 11 – 16V DC
Gain Adjust: 150mV – 6V
Total Harmonic Distortion: <=0.05%
RCA Input: 2 Channel
Crossover Frequency: 50HZ – 400HZ
Crossover Slope (dB/oct): 8 – 10dB/oct
