Product Overview

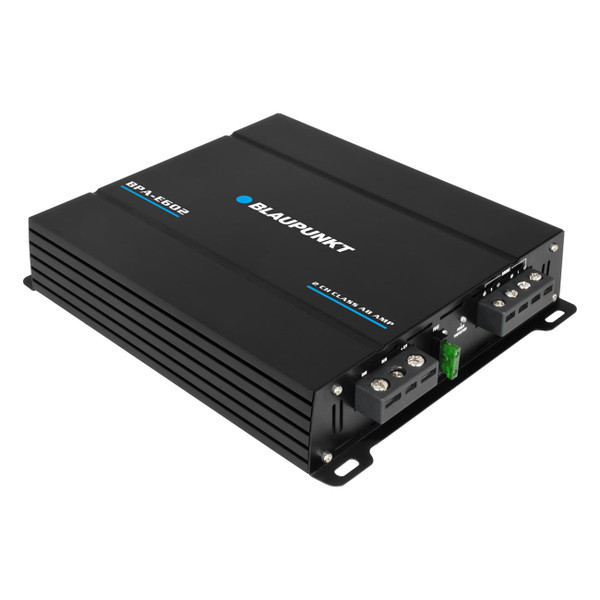

Blaupunkt E Series 2 Channel Amplifier, 180W RMS
2 x 90 Watts RMS @ 2 Ohm
2 x 60 Watts RMS @ 4 Ohm
1 x 180 Watts RMS @ 4 Ohm (Bridged)
(W x H x L) 8"e; x 2"e; x 9.25"e;
Fuses: 30A
2 Ohm Stable
Class A/B
Frequency Response: 20 Hz - 20 KHz
High Pass Filter: 50 Hz - 1.2 kHz
Low Pass Filter: 50 Hz - 200 Hz
Bass Boost: 0, 6, 12 dB
Signal to noise ratio: =90dB
Sensitivity: 0.2 - 6V
THD: =0.1%
Power/Protect LED Indicators
High/Low Level Inputs
RCA Output
