Product Overview

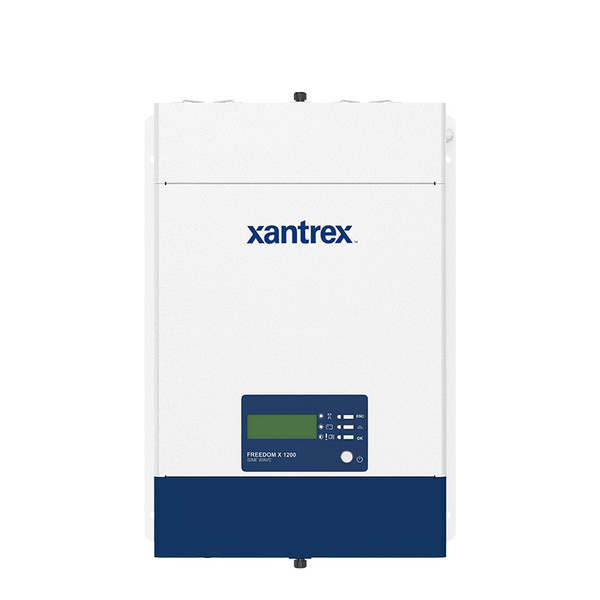

Xantrex Freedom X Pro 1200 1000 watt 120AC 12v DC Inverter
Model: 806-1212-05Its rugged, industrial design ensures optimum performance in all conditions. Quick connect terminals at AC input & output and pre-wired pigtails cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, built-in transfer switch and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.
Specifications| Output Power (continuous) | 1200 W |
| Surge Rating | 2400 W |
| Output Voltage Range | 110-125 Vac |
| Output Frequency Regulation (user configurable) | 50/60 Hz |
| Output Wave Form | True Sine Wave |
| Efficiency (full load) | > 86% |
| Peak Efficiency | > 91% |
| No-load Input Power (producing output voltage) | < 10 W |
| Off Mode Current Draw (display off) | < 4 mA |
| AC Input Operating Voltage Range | 95-130 Vac |
| AC Transfer Relay | 30 A |
| DC Input Operating Voltage Range | 10.5-16.5 Vdc |
| Transfer Time | 10-20 ms |
| Battery Voltage (nominal) | 12 Vdc |
| Low Battery Cut-out | Adjustable from 10.5-12.1 Vdc |
| Net Weight | 10.4 lb (4.7 kg) |
| Dimensions | 14.8 x 10.4 x 3.5 in (376 x 263 x 91 mm) |
