Product Overview

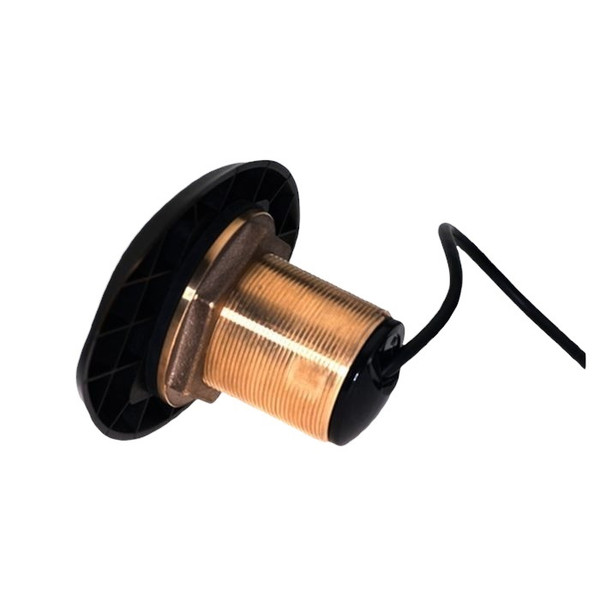

Simrad Bronze HDI XDCR 12deg Tilt 50/200 455/800
Model: 000-13906-001- Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.
Specifications| 50,200,455 and 800 kHz | |
| Beam width @ -3db | 50kHz 45 deg
200kHz 11 deg
455kHz Fore to aft 2.8 deg, Port to starboard 56 deg 800kHz Fore to aft 1.6 deg, Port to starboard 32 deg |
| Cable length | 10 meter |
