Product Overview

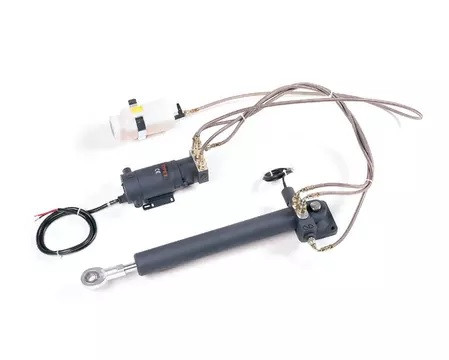

Raymarine E12207 Type 2 12v Hydraulic Linear Drive
Model: E12207Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.
A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.
Specifications| 22,000 kg | |
| Peak thrust | 585 kg |
| Maximum stroke | 254 mm |
| Hard-over to hard-over times | 10 seconds |
| Maximum rudder torque | 1,270 Nm |
| Corepack used | ACU-400 |
