Product Overview

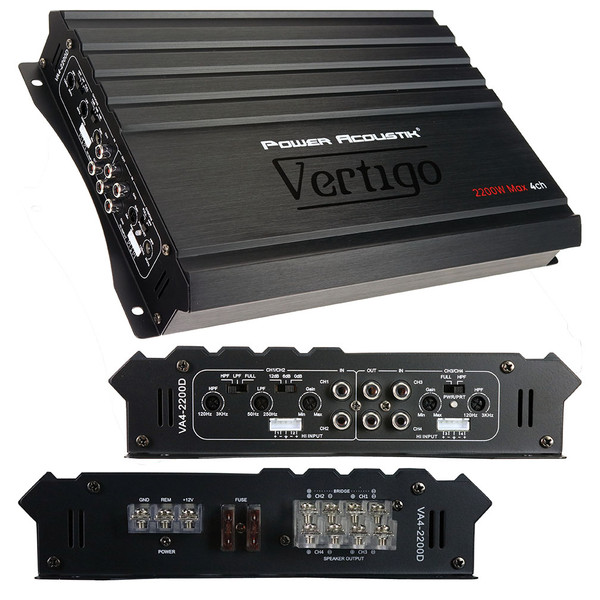

Power Acoustik 4 Channel Class-A/B Amplifier
2200 Watts Max
4 x 120 Watts RMS @ 4 Ohms
4 x 200 Watts RMS @ 2 Ohms
2 x 400 Watts RMS @ 4 Ohms Bridged
Dim: (W x H x L) 8.75"e; x 2"e; x 11.75"e;
Fuses: 2 x 40A
2 Ohm Stable
Class-A/B Full Range
Hybrid Aluminum Alloy Heatsink
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
200mV-6V Low Level/RCA Input
Barrier Strip Wire Terminals
Variable 12dB High Pass and Low Pass Crossovers
12dB Bass Boost Increases Low Octave Harmonics
Hi/Low Level Inputs
Direct Short, Thermal, & Overload Circuits Protect Amplifier
4 ga. Power & 8 ga. Speaker Outputs
