Product Overview
The Phone-Com intercom system provides direct, wired, point-to-point communication anywhere on the vessel. Voice contact to any phone in the system is as easy as lifting the receiver and pressing the call button. Phone-Com operates on 12 VDC. They are constructed of high-impact plastic and are available in either bright white or traditional black. Bulkhead mounting bracket is provided. Two versions are available:
PI-2: Designed for communication between only two points. A single call button sounds a buzzer and illuminates an indicator lamp on the companion phone. Available singly or as a set with 40 feet of interconnect wire, fuse, terminal lugs and mounting hardware.

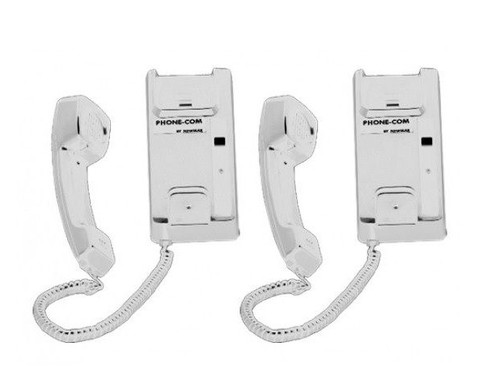

PI-2 SET: Two station phone set, 40 feet interconnect wire, fuse, lugs, mounting hardware; 5 lbs.
PI-10:For multiple station calling capability. Up to 10 phones may be interconnected, and each phone has 10 call buttons. Sold individually-- see wiring requirements below.
Phone-Com Wiring: For PI-2, use 5 conductor wire. For PI-10, add 3 to the total number of stations to determine minimum number of conductors required.
Note: Phones are not waterproof and should be installed in a protected location
