Product Overview

Waterproof, powered hub for wideband Ethernet data sharing
For HDS and add-on module networking and earlier Lowrance models with 5-pin connector
Transmits sonar graphing display/control on HDS-M series chartplotters when networked with HDS sonar displays
Connects up to five compatible displays and Ethernet modules
Advanced VHF radio band noise rejection

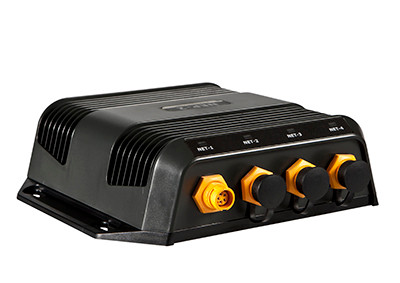

NEP-2 is a plug-and-play powered hub for sharing sonar, StructureScanTM Sonar Imaging, Broadband 3G Radar or HD Digital Radar and LWX-1 SIRIUS(R) Satellite Weather data between multiple HDS(R) displays across an onboard network.

Also compatible with 2007 and later LCX, LMS and GlobalMap(R) models with 5-pin Ethernet connector for networking multiple displays.

Fully waterproof and resists corrosive marine environments. Unused connector ports feature waterproof caps for added protection for future expansion.

TECHNICAL / ENVIRONMENTAL

Waterproof Standard	IPX7 standards
Width	8.3 in 210 mm
Height	2.3 in 57.6 mm
Depth	7.4 in 188 mm
Weight	1.82 lbs 0.825 kg
Operating Temperature	-20 deg to +167 deg F (-28 deg to +75 deg C)
