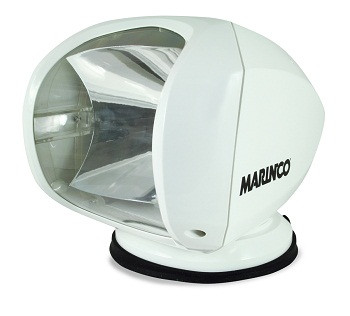

Product Overview
- Universal 12/24 volt circuit with bright 100W, H3 halogen bulb
- UV resistant, IP56 Weatherproof ABS housing and Lexan(R) lens
- Double O-ring sealed housing, designed for the harsh marine environment ? moisture, salt, shock and vibration tested
- Universal snap-in mounting system (can be mounted upside down)
- Super-quiet, all-weather motor with limit stops provides a full range of coverage
- 370 deg sweep and 120 deg Tilt (75 deg up and 45 deg down)
- One touch auto sweep and S.O.S. function
- Wireless dash mount remote standard; (hard wired & handheld remotes are optional)
- 5-Year limited warranty
Bulb: 100 Watt, H3 Halogen
Power (Input voltage): 12V or 24V
Current draw (idle/in use): 0.03 amps / 7.0 amps
Peak Beam Intensity: 210,000 Cp
Peak Beam Distance: 3,000 ft (917 m)
Lux @ 82 feet (25 m): 226 Lux
Coverage at 82 feet (25 m): 180 sq ft (15'H x 12'W) (16.7 sq m [4.6 m x 3.6 m])
Rotation: 370 deg (built in limit stops)
Tilt: 120 deg Tilt (75 deg up & 45 deg down)
Wireless range: 200 ft (65 m)
Dimensions: 7.5"W x 7.5"H x 9.25"D (19cm x19cm x 23.5cm)
Weight: 3.30 lbs (1.5 kg)
Housing material: UV resistant PC/ASA
Lens material: UV resistant Lexan(R)
operating temp range: 5 degF?113 degF (-15 degC?45 degC)
IP Rating: IP56
| Remote Option | SPLR-2 | SPRL-1 | SPRL-3 |
| Included | Optional | Optional | |
| Remote Specification | Wireless Bridge Remote | Hand Held Bridge Remote | Wired Bridge Remote |
| Power | 12/24v | CR2540 button cell battery | 12/24 hard wired |
| Current Draw | Negligible | Negligible | Negligible |
| Wireless Range | 200 foot | 200 foot | N/A |
| Estimated Battery Life | N/A | >40 hours (Continous Use) | N/A |
| Dimensions W x H x D | 3.5 in x 2.25 in x .75 in | 2 in x 3.78 in x 1 in | 3.5 in x 2.25 in x .75 in |
| Weight | 2.12 oz | 2.82 oz | 2.12 oz |
| Operating Temp | 5 degF - 113 degF | ||
| IP Rating | IP56 |
