Product Overview

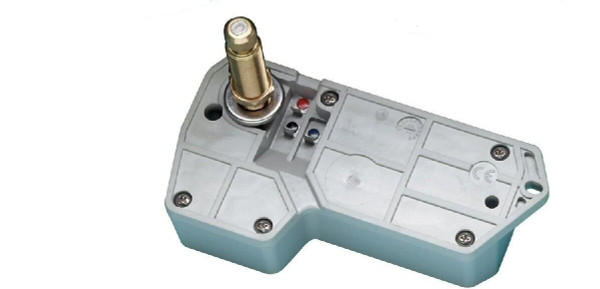

Marinco 37180 12V 1000 Waterproof Wiper Motor with a 2.5in shaft and 80 degree Sweep
Model: 37180- Coast to park with adjustable right or left self parking
- Heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- RF shielded circuitry
- Includes 5A fuse and holder (on/off switch sold separately)
- 3 year limited warranty
The Marinco 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degrees or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degrees or less.
Specifications| Stall torque | 55 in-lbs (63 kgf/cm; 6.2 Nm) |
| Stall current | 9.8 to 10.0A |
| No-load current | 0.8 to 1.2A |
| Voltage | 12V |
| Fuse | 5A |
| Shaft diameter | 0.625" |
| Dimensions | 6.625" x 3.375" x 2" (L x W x D) |
