Product Overview

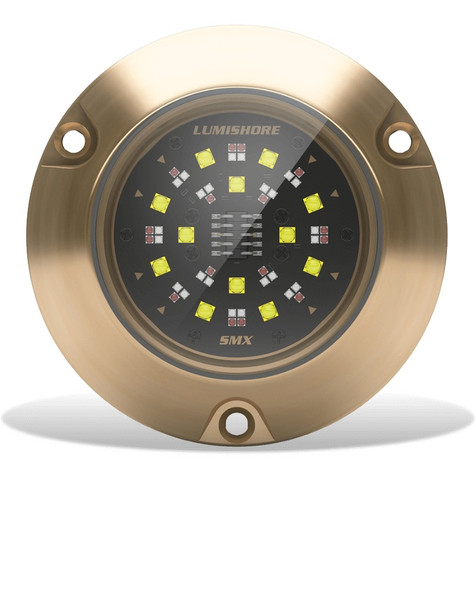

Lumishore EOS SMX154 Surface Mount RGBW LED
Model: SMX154 / 010-04508-00The SMX154 offers boat owners unprecedented full color control of their underwater lighting system, delivering 7,000 verified fixture lumens and a wide 90 deg beam angle.
Control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.
Lumishore's unique light discovery and light auto-install function simplifies the system setup and reduces installation time.
Suitable for stepped hulls, transoms, and side mounting.
Specifications| FULL EOS COLOR CHANGE (RGBW) | |
| LUMENS | 15,750 |
| VERIFIED FIXTURE LUMENS (WHITE) | 7,000 |
| NUMBER AND TYPE OF LEDS | White-12×10W / Green-12×3W / Blue-12×3W / Red-16×3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 90 deg |
| DRIVER | Multi-Channel Internal Driver |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 4.0A/2.0A |
| HOUSING TYPE | MARINE GRADE BRONZE / GLASS LENS |
| USER CONTROL OPTIONS | From your MFD and/or optional Lumishore Display |
| Warranty | 3 Years |
What's in the Box:
- One (1) EOS SMX154 Light with Built-in Driver
