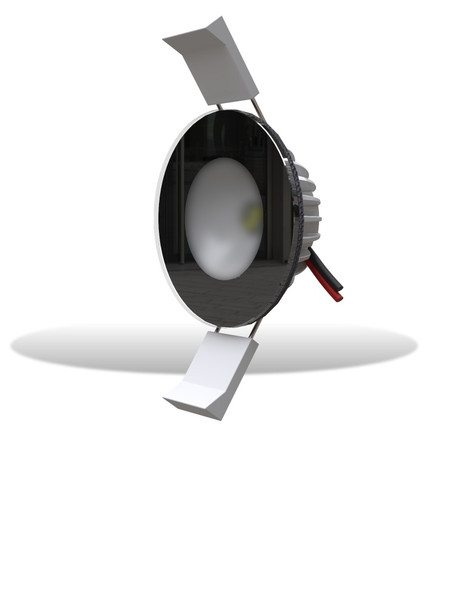

Lumishore Eclipse DL55 Downlight RGBW 12v Black Bezel
Model: Eclipse DL55 / 010-04541-00Lumishore's ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.
They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83 in).
Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boat's aesthetic.
Specifications| White (5000k) + Red, Green, Blue | |
| LED Type | 1 x 3W Red LEDs / 1 x 3W Blue LEDs / 1 x 3W Blue LEDs / 1 x 3W White LEDs |
| Customer Control Options | On/Off Switch or ECLIPSE Command Center |
| Electrical Installation | Simple 2 Wire Installation |
| Supply Voltage Range | 12V DC Only (10 - 15V DC) |
| Max Current Draw (12/24V DC) | 0.4A |
| Ingress Protection | IP67 |
| Front Diamater (Bezel) | 64.0mm (2.519) |
| Profile (When Installed) | 3.00mm (0.118 in) |
| Hole Diameter for fitting | 50.8mm (2.0 in) |
| Mechanical Installation | Stainless Steel Spring Clips Marine Adhesive (Optional) |
| Warranty | 3 Years |
