Product Overview

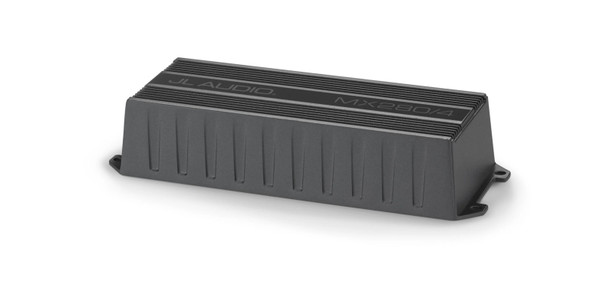

JL Audio MX Marine Amplifier 4-Channel Full-Range 4-Channel Full-Range 280 Watts 12v
98405
Model: MX280/44-Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 ohms / 50 W x 4 @ 4 ohms - 14.4V
Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexDTM switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV's or other utility vehicles.
Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| 50 W RMS x 4 | |
| @ 2 ohms | 70 W RMS x 4 |
| Bridged @ 4 ohms | 140 W RMS x 2 |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 ohms | 36 W RMS x 4 |
| @ 2 ohms | 52 W RMS x 4 |
| Bridged @ 4 ohms | 100 W RMS x 2 |
| General Specifications | |
| Frequency Response | 20 Hz - 20 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >60 / 50 Hz |
| Damping Factor @ 2 ohms | >30 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 ohms per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 35 A (AFS, AGU or MaxiFuseTM) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 35 Hz - 300 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | No |
| Remote Level Modes | N/A |
| Channel Input Mode Switch | Yes (2/3/4 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
| Physical Specifications | |
| Height | 1.77 in / 45 mm |
| Width | 8.66 in / 220 mm |
| Depth | 3.09 in / 78.5 mm |
| Net Weight | 3.18 lb / 1.44 kg |
What's in the Box:
- (1) Amplifier
- (4) Stainless steel mounting screws
- (1) Spare 35A fuse
- (1) User manual
