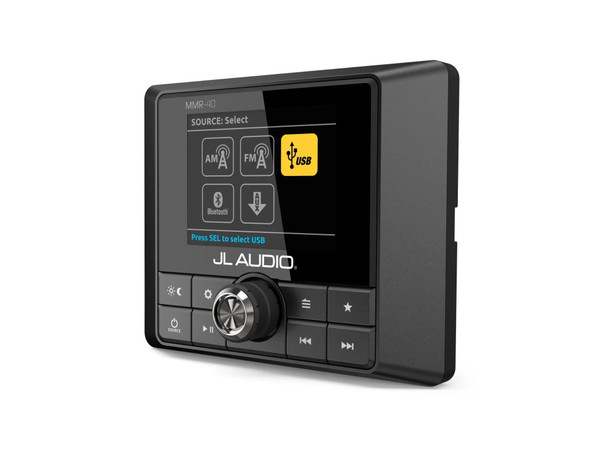

Jl Audio Mmr-40 Nmea200 Network Controller For Mediamaster

JL Audio MMR-40 Wired, Full-Function NMEA 2000(R) Network Controller with Full-Color LCD Display for use with MediaMaster(R)

• Direct interface with a vessel's NMEA 2000(R) network using applicable NMEA 2000(R) cables and connectors (not included)
• Direct connection of one MMR-40 with one host MediaMaster(R) source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000(R) network
• NMEA 2000(R) Certified (LEN 4)
• Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls
• Independent day/night display themes and lighting controls
• IP66 rated for real marine duty
• Protective Sun Cover included

Full-function, NMEA 2000(R) network wired remote controller with full color LCD display

The MMR-40 is a NMEA 2000(R) Network Controller engineered to add full-function, auxiliary control to MediaMaster(R) source units.

Outfitted with a NMEA 2000(R) Micro-C connector, the MMR-40 connects to a host MediaMaster(R) source unit in two ways:

Once connected, the MMR-40 automatically recognizes the host MediaMaster(R) source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster(R) user experience.

The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.

Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster(R) source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000(R) network or use of MMC-PN2K powered network cables (sold separately).

• MMR-40 Network Controller
• Mounting gasket
• Mounting template
• Mounting screws x 4
• Protective sun cover
• User Manual
