Product Overview

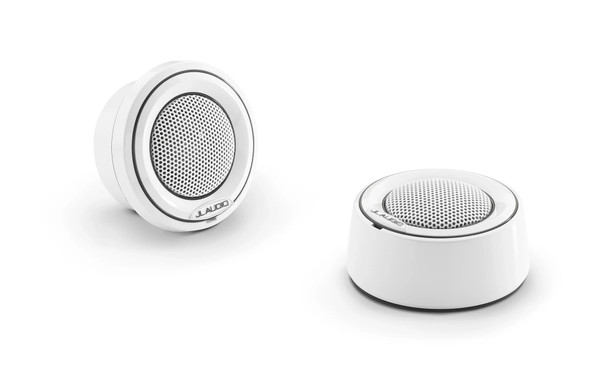

JL Audio M6 1in Component Tweeter White Mounting Cups and White Trim
93692
Model: M6-100CT-C/S-3Gw1-inch (25 mm) M6 Marine Component Tweeters, Gloss White Mounting Cups, Gloss White Trim Ring, White Tweeter Mesh, Pair
The standalone, M6 component tweeters are built with a 1-inch (25 mm) silk dome diaphragm to deliver high output, wide dispersion and sparkling high-frequency detail. The tweeters can be flush-mounted or surface-mounted with the supplied
The component tweeters come with outboard, 3rd order, high-pass filters optimized for superior output and high-frequency detail. An automatic, solid-state circuit is also onboard to monitor current and minimize the possibility of tweeter failure. Like all M6 models, the component tweeters are built to withstand real-world saltwater conditions with an unsurpassed level of fidelity.
Sonic character: Powerful and Smooth.
Sold as a pair.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| 75 W | |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 4.8 Hz - 25 KHz ± 3 dB |
| Tweeter Physical Specifications | |
| Flush Mount Fixture Diameter | 2.61 in / 66 mm |
| Surface Mount Fixture Diameter | 2.67 in / 68 mm |
| Flush Mount Mounting Hole Diameter | 2.125 in / 54 mm |
| Flush Mount Mounting Depth | 1.70 in / 43 mm |
| Flush Mount Tweeter Frontal Protrusion | 0.54 in / 14 mm |
| Surface Mount Tweeter Frontal Protrusion | 1.27 in / 32 mm |
