Product Overview

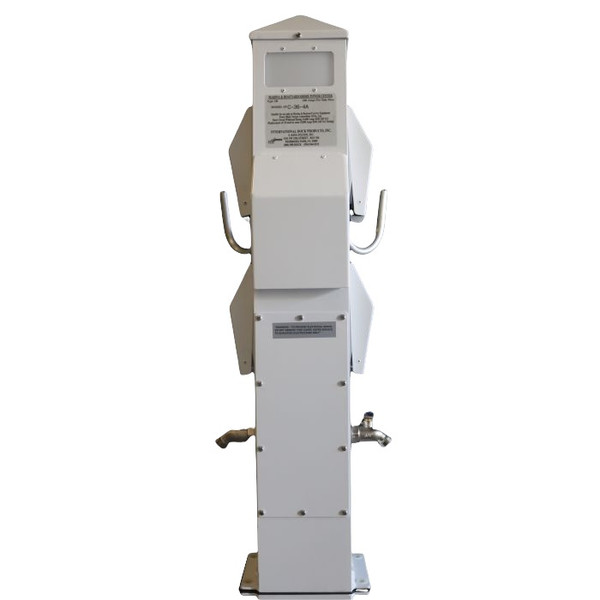

International SPC-36-4A-498Dock Power Pedestal
Model: SPC-36-4A-498- Cone top
- Powder coated white inside and outside
- All stainless steel fasteners with nylon washers.
- Round and Flat Brackets
- 15 year unconditional warranty on structural integrity of casing
- Flourescent Light and Photocell
- 2 - Water
- 2-Hose Holders
- 2 - 30 Amp 125V
- 2 - 50 Amp 125/250V
- All receptacle mounted at 45 degrees
- All receptacle covers to be aluminum powder-coated
| 50 Amp 125/250V | |
| Upper left receptacle | 50 Amp 125/250V |
| Lower right receptacle | 30 Amp 125v |
| Lower left receptacle | 30 Amp 125v |
| Cable TV | None |
| Phone | None |
| Meter | None |
| Water Left | Standard |
| Water right | Standard |
| Hose Holder Left | Non-cast Hook |
| Hose holder right | Non-cast Hook |
| Cable TV | None |
| Phone | None |
| Meter | None |
| Power distribution box | Direct feed max wire size 2/0 |
| Lighting | PL-7 Flourescent with Photocell |
| Pedestal dimensions | 6 x 6 in x 36 in |
