Product Overview

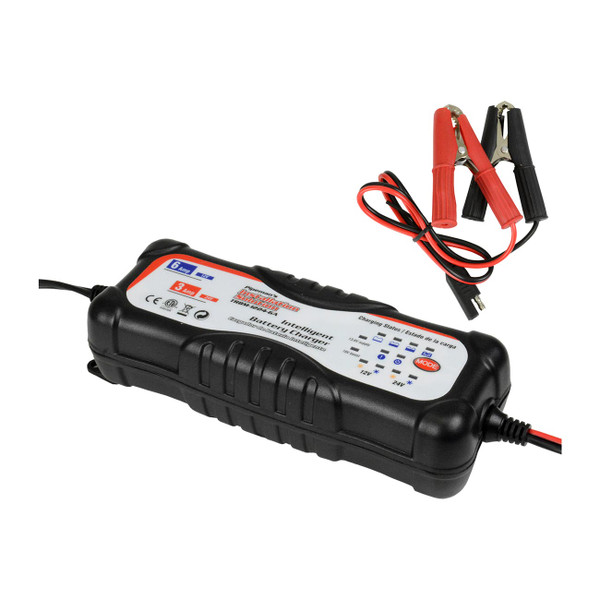

Installation Solution Intelligent Battery Charger - 12V / 24V Output
Input Voltage: 110V AC, 60Hz or 230V AC, 50Hz
Output Voltage: 12V & 24V (auto - select)
Efficiency: > 75%
Charging Voltage: 28.8V, 29.4V, 16.5V, 14.4V, 13.6V (± 0.25V)
Charging Current: 6.0A, 4.0A, 3.0A, 2.5A, 1A (± 10%)
Back Drain Current: <5mA
Ripple: Max 150mV, 0.3A
Ambient Temp: -20°C - +40°C / -4°F - 104°F, Reduced output power at higher temperature
Battery Types: 12V & 24V lead-acid batteries (WET, MF, AGM and GEL)
Housing Protection: IP65 (Dust and Splash proof)
