Product Overview

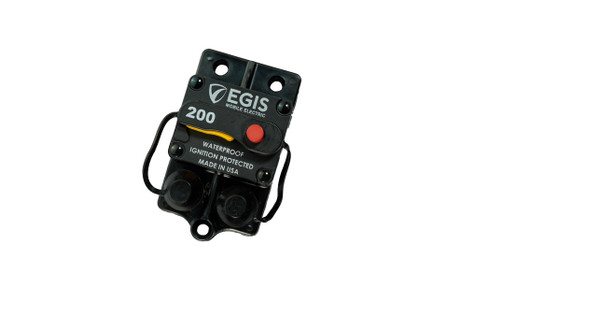

EGIS 285-Series 200 Amp Circuit Breaker Surface Mount
Model: 4709-200- ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Integrated Terminal Insulators Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
- Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 200 | |
| MAX VOLTAGE (VDC) | 30 |
| CYCLING ENDURANCE | 200 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) | 2,500 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 1,500 |
| INGRESS PROTECTION RATING | IP67 |
