Product Overview

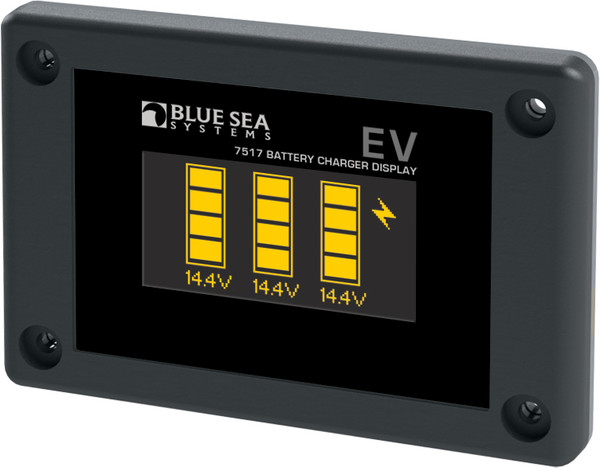

Blue Sea P12 Battery Charger Summery Display
Model: 7517-BSS- Drop in replacement for traditional rectangular displays
- Automatically detects 1-3 battery banks
- AC charge indication verifies that power is connected and the battery charger is charging
- Plain language fault indication relays if there is a fault with the battery charger
- Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
- Displays voltage bar graphs even when AC power is not present
- Optional standby mode shuts off screen after 4 hours of inactivity
- Automatic ON based on motion with integrated knock sensor
- Bright, daylight readable, OLED display
The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.
Specifications| Accuracy | +/- 1% at 36 Volts DC |
| Battery Inputs | 3 with common reference |
| Display Size | 55mm x 28mm |
| Display Type | Yellow OLED |
| Input Voltage Range | 6-36V DC |
| Maximum Current Draw | 50mA |
| Minimum Current Draw | <1mA in Standby Mode |
What's in the Box:
- EV Battery Charger Display
- Mounting Gasket
- Four Position Connector
- 25ft (7.8m) Cat5e Cable
