Product Overview

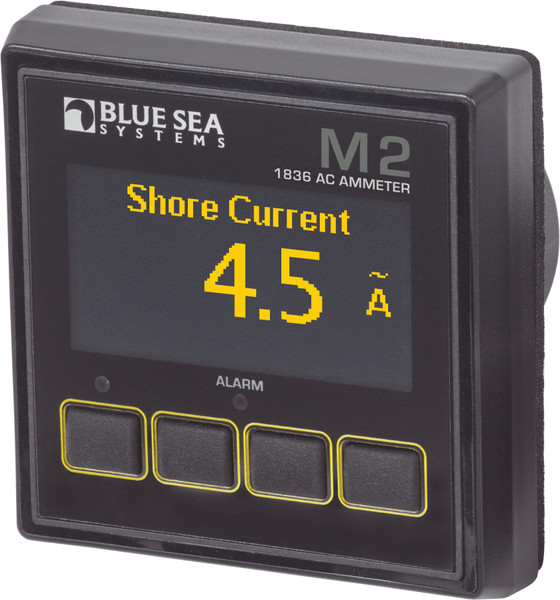

Blue Sea Systems M2 AC Ammeter
Model: 1836-BSS- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
Monitors AC Amperage on large, bright display. Supports programmable current transformer ratios. Accurately measure and alarm the amperage of your AC system. (measures 2 independent circuits)
Specifications| to 300A | |
| Input Voltage | 7-70V DC |
| Alarms | High/Low Current |
| Current Accuracy | ± 2.0% |
| Current Range | 0-150A |
| Display Size | 55mm x 28mm |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Weight | 4.00lb (1.81 kg) |
What's in the Box:
- M2 AC Ammeter Head Unit
- Surface Mount Bezel and Seal
- Surface Mount Gasket
- Surface Mount Cover
- Flat Mount Bezel
- Flat Mount Clamp
- Mounting Ring
- Mounting Nut
- Connectors
- Screwdriver
- AC Current Transformer
