Product Overview

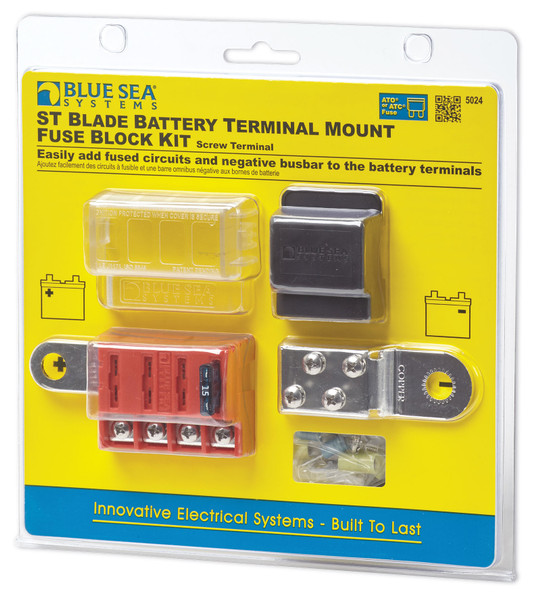

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit
Model: 5024- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Nylon insulated ring terminals included for each screw terminal
- Accepts small format circuit labels
- Insulating cover meets ABYC/USCG insulation requirements
- Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Includes a 4-circuit negative busbar
- Includes write on labels
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
| 4 | |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Bus Material | Tin-Plater Copper C11000 |
| Mounting Hole | 3/8 (M10) Stud |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 |
| Weight | 0.50lb (0.23 kg) |
