Product Overview

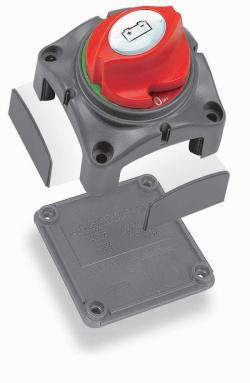

The 701 Contour Battery Master Switch offers a number of unique features. The highlights being the patented contour lock system, allowing it to be a stand alone unit, or locked together with other switches. The 701 also features a control knob which cannot be removed whilst in the ON or OFF position, however, can be removed by switching to an anti-clockwise 45 deg position. The control knob also features an interchangeable labelling system allowing a full range of applications. The 701 also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits. This ensures the switch meets ABYC requirements. The 701 can be either surface or recess mounted.
701 Specifications:- Continuous Rating: 275 Amps DC
- Intermittent Rating: 455 Amps DC
- Cranking Rating: 1250 Amps DC
- Voltage Rating: 48 Volts DC
- Operation: On/Off
- Mounting: Recessed or Surface
- Ignition protected
- Termination Stud Size:
2 x 10 mm (3/8 inch) - Dimensions: 69 x 69 x 75h mm
(2.75 x 2.75 x 3h inches) - Tin plated copper studs and nuts
