Product Overview

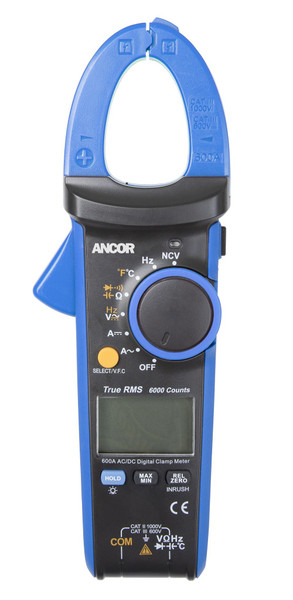

Ancor True RMS 12 Function
Digital Snap-Around Multimeter
Model: 703079- Easy to reead backlit OLED screen
- Non-contact AC voltage testin
- Providees accurate reeadings for both puree sin wave and modified sine wave elecctrial circuits
- Zeroing function
- Flashlight for us in dark compartments
- Includes convenint carrying cas
- Batteries: three AAA Batteris (not included)
- Continuity
- Diode Test
- NCV
| 600.0mV, 6000mV/6.000V, 60.00V, 600.0V, 1000V | |
| AC Voltage (V) | 600.0mV, 6000mV/6.000V, 60.00V, 600.0V, 750V |
| DC Current (A) | 60.00A, 600.0A |
| AC Current (A) | 60.00A, 600.0A |
| Resistance | 600.0, 6000/6.000k, 60.00k, 600.0k, 6.000M. 60.00M |
| Capacitance (F) | 60.00nF, 600.0nF, 6.000uF, 60.00uF, 600.0uF, 6.000mF |
| Frequency (Hz) | 10.00Hz-1.000MHz |
| Temperature ( degF) | -40 degF to 1832 degF |
| Temperature ( degC) | -40 degC to 1000 degC |
| Overload Protection | 1000V DC, 750V AC |
| CAT Rating | CAT II 1000V, CATIII 600V |
