Product Overview

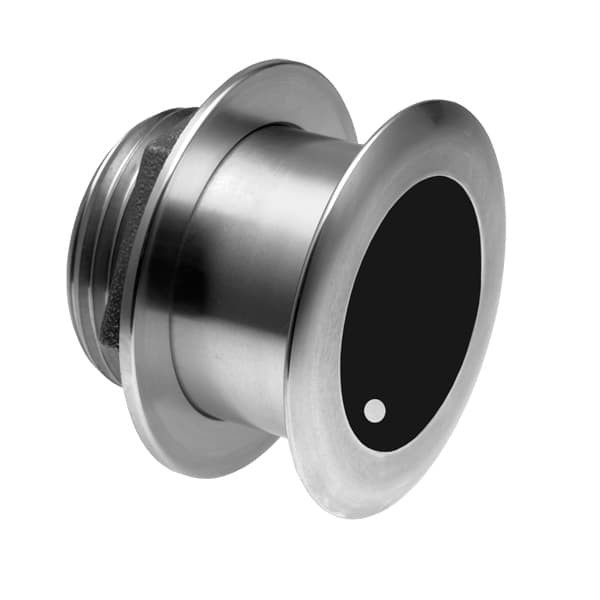

Airmar SS175C-0-M 0d Tilt
Medium CHIRP with Navico BL
Model: SS175C-0-M- Depth and water-temperature sensor
- 1 kW with a maximum depth of 457 m (1500 feet)
- Medium Frequency: 85 kHz to 135 kHz = 16 deg to 11 deg beamwidth
- 50 kHz of total bandwidth from one transducer
- Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation
- Recommended boat size: Up to 11 m (36 feet)
- Stainless steel housing is compatible with all hull types and materials
- Also available in a bronze housing (B175H) model
- Exclusive Xducer ID(R) technology
Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500 feet) and delivers ultra-clear target resolution.
Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.
Specifications| 2.7 kg (6 lb) | |
| Hull Deadrise | 0 deg to 7 deg hull deadrise |
| Acoustic Window | Urethane |
| Hole Size | 98 mm (3-7/8) |
| One internal ceramic assembly | |
