Product Overview

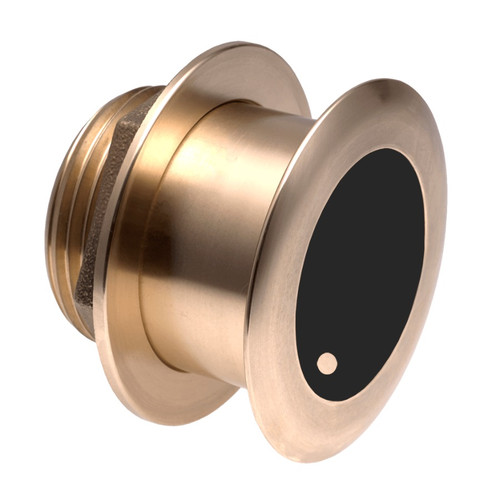

Airmar B175MW Medium Ultra-Wide 20 deg Tilted ElementTM Thru-Hull - With Furuno 10-Pin Mix-N-Match Cable
Model: B175C-20-MW-10F- Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
- Depth and fast-response water-temperature sensor
- 1 kW with depth tracking down to 400 m (1,300#39;)
- Medium frequency: 60-100 kHz
- 57 deg to 73 deg beamwidth (port/starboard)
- 16 deg average fore/aft
- 40 kHz of total bandwidth from one transducer
- Medium frequency for superior mid-depth performance and excellent fish-target separation
- Bronze housing for use on stepped, planing or displacement hull
- Low-profile, thru-hull housing yields good resolution at speed when installed properly
- Exclusive Xducer ID(R) technology
AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted ElementTM Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
Specifications| 1 kW | |
| Housing | Bronze |
| Functions | Depth, Temperature |
| Hull Material | Fiberglass or wood |
| Max Vessel LOA | Up to 11 m (36 feet) |
| Hole Size | 95 mm (3-3/4) |
| Mounting Style | Tilted Element Thru-Hull |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30 feet) |
| Max Depth | 400 m (1300 feet) |
| Medium Frequency | 60-100 kHz |
| Medium Frequency Beamwidth | 57 deg to 73 deg (Port/Starboard) X 16 deg average (Fore/Aft) |
| Water Temperature | -10 deg to 40 degC (14 deg to 104 degF) |
| Cable End | Mix-N-Match |
What's in the Box:
- B175C-20-MW-MM 20d Tilt Medium CHIRP Ultra Wide
- MMC-10F Furuno 10-Pin Mix-n-Match Cable "
